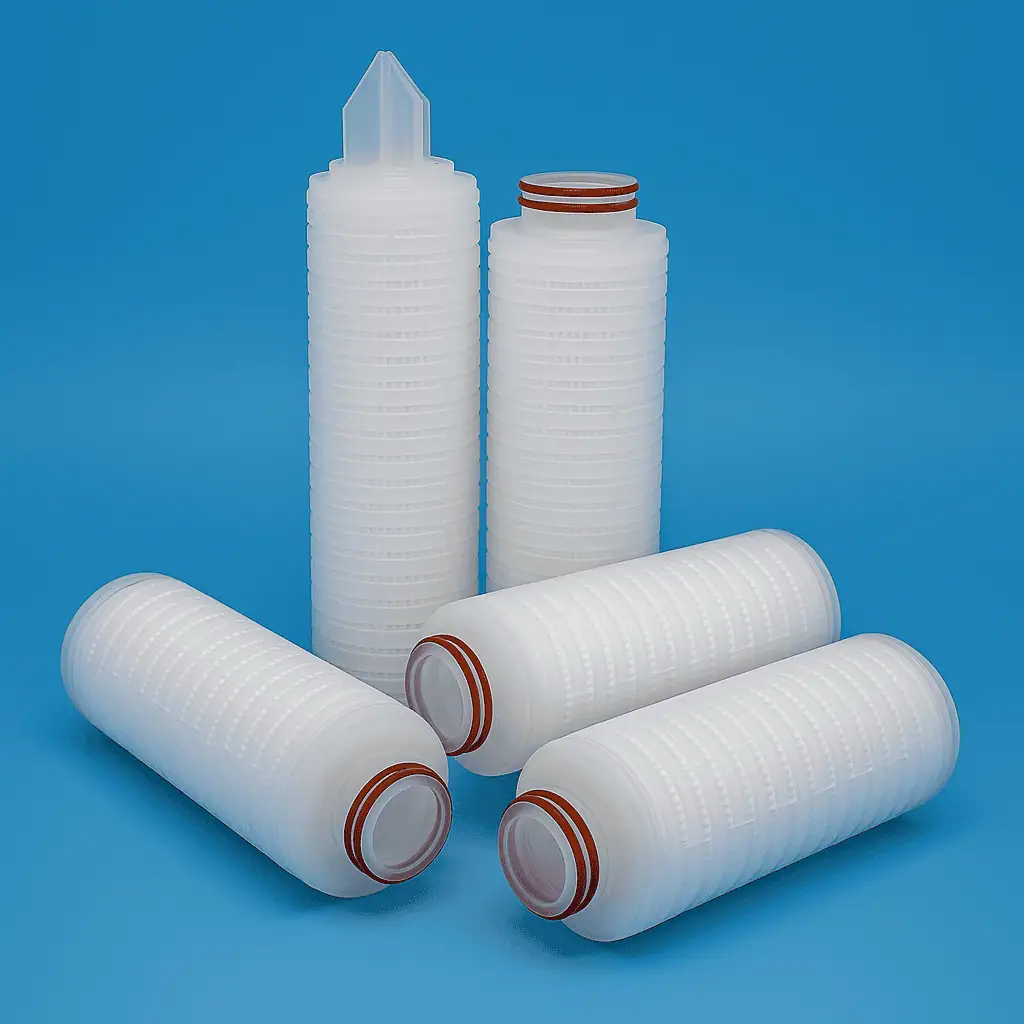

PES Cartridge Filters
The NuCart® series of PES Cartridge Filters are ready-to-use sterile grade filtration devices available in 0.1µm and 0.22µm, and different sizes as per requirements. 0.45µm is for bioburden and particulate reduction.
Assembled with our advanced Polyethersulfone Membrane technology, these filters guarantee optimal bacterial retention and are a go-to choice for filtration of vaccines, injectables, large volume parenterals (LVPs), SVPs, API buffers, water for injections, and beverages.
Manufactured in-house in ISO Classified cleanrooms, these devices incorporate highly efficient sterilizing grade Asymmetric Polyethersulfone Membranes and are used with an external stainless-steel housing.
Designed with a unique construction structure and an advanced pleating technology, these PES Cartridge Filters offer high flow rates and ensure optimized sterilization of liquids.
Membrane Characteristics: The NuCart® PES Cartridge Filters incorporate our high throughput hydrophilic PES membrane that offers excellent chemical compatibility and withstands a wide pH range. Available in single layer or dual layer options, these are absolute retention filters and offer excellent contaminant removal capacity.
APPLICATIONS
- Filtration of Large Volume Parenterals (LVPs) and (SVPs) based on selected size
- Sterile filtration for Injectables, biopharmaceutical products, vaccine etc.
- Sterile filtration of APIs, buffer solutions, opthalmic solutions, disinfectants
- Filtration of Water for injection
- Filtration of Wine, Beer & other alcoholic beverages
Microbial Validation
Validated as per the ASTM F 838-05 requirements for determining bacterial retention of membrane filters used for liquid filtration
FDA Compliant
Biosafety & Extractables
Integrity Tested
Global Manufacturing Standards
Easy Identification & Tracking
Each filter unit has a unique identification marking which enables quick backtracking
100% Integrity Tested
Guaranteed Specification as per Actual Data
Non Leachable
Ergonomically Designed & Developed
TECHNICAL SPECIFICATIONS
PES Cartridge Filters
| Materials of Construction | ||
| Membrane: | Polyethersulfone | |
| Housing: | Polypropylene | |
| Core: | Polypropylene | |
| End Connections: | Polypropylene | |
| Rings: | Silicone (Only with 1/4" MNPT) | |
| Operational Parameters | ||
| Max Temp | 80 °C @ ≤ 2 Kg/cm2 | |
| Max Pressure | 3.5 Kg/cm2 @ 25 °C for forward | |
| 0.7 Kg/cm2 @ 25 °C for reverse | ||
| Sterilizability | 30 autoclave cycles of 30 minutes at 121 °C | |
| Bubble Point: | ||
| 0.10µm: | ≥ 1931 mbar (28 psi) (70% IPA/ water wetted) | |
| 0.22µm: | ≥ 3447 mbar (50 psi) (with water wetted) | |
| 0.45µm: | ≥ 2206 mbar (32 psi) (with water wetted) | |
| Max Air Diffusion Flow (for 10″ Cartridge): | ||
| 0.10µm: | ≤ 30 mL/min @ 3447 mbar (50 psi) | |
| 0.22µm: | ≤ 30 mL/min @ 2482 mbar (36 psi) | |
| 0.45µm: | ≤ 35 mL/min @ 1655 mbar (24 psi) | |
| Microbial Retention: | ||
| 0.22µm: | LRV > 7 for Brevundimonas Diminuta | |
| 0.45µm: | LRV > 7 for Serratia marcescens |
| Effective Filtration Area: | |||||
| Length: | 1" | 2" | 5" | 8" | 10" |
| Area: | 0.025m2 | 0.05m2 | 0.10m2 | 0.20m2 | 0.60m2 |
QUALITY ASSURANCE & VALIDATION
All filters are 100% integrity tested and are developed and manufactured under an ISO 9001:2015 certified Quality Management System and designed to be used in cGMP compliant processes.
Microbial Validation
All our Cartridge and Capsule filters are validated as per the ASTM F 838 requirements for determining bacterial retention of sterilizing grade filters
Certificate of Quality
All our products are delivered along with a Certificate of Quality (CoQ) mentioning the materials of construction and testing & quality parameters
Throughput Studies
We help you select the perfect mix of prefilters and final filters by performing small scale filtration and determining the filtration area to reach your desired throughput
Extractables & Leachables
Our Extractables & Leachables testing study is a highly effective way to quantify and assess risks associated with leachable impurities from filters
