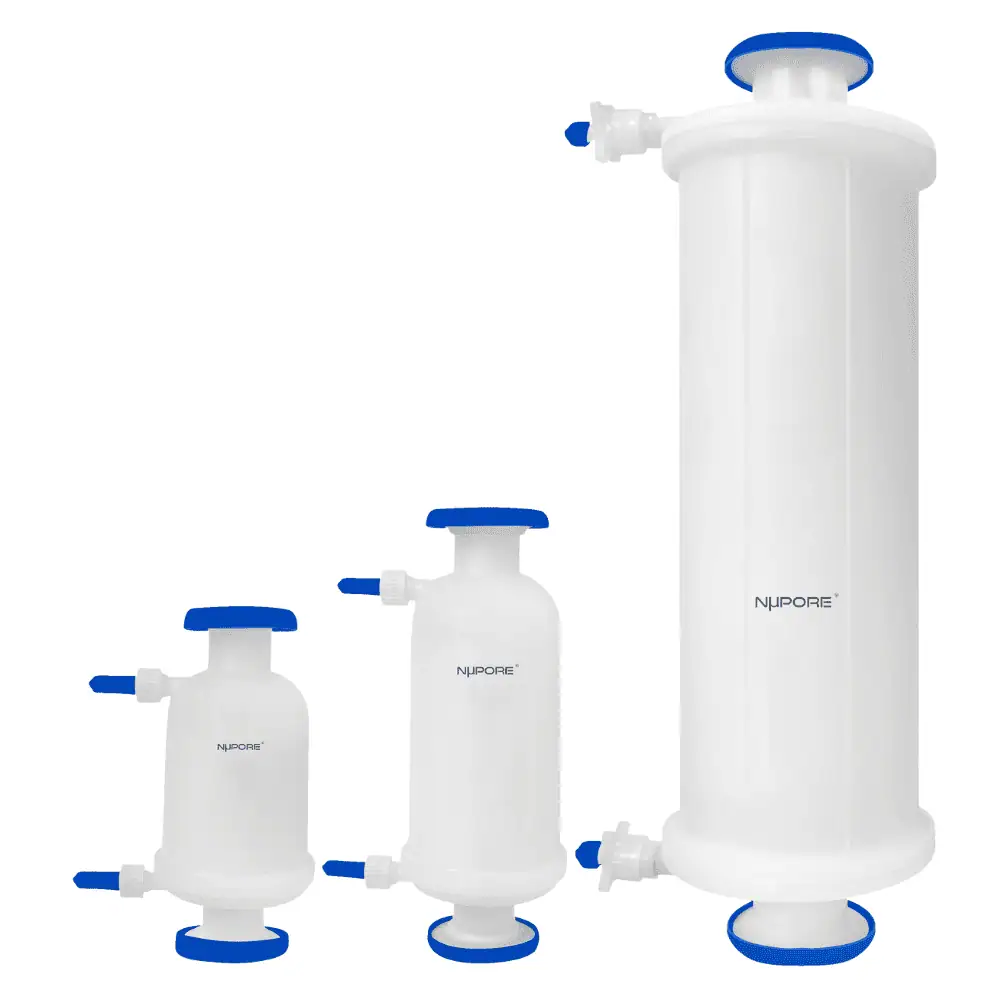

PVDF Capsule Filters
The PoreCap® series of PVDF (Polyvinylidene Fluoride) capsule filters are ready-to-use sterile grade filtration devices that offer low protein binding.
Assembled with our advanced PVDF Membrane technology, these filters are best suited for filtration of valuable protein solutions such as vaccines, antibodies, plasma products and hormonal injectables.
Manufactured in-house in ISO Class 8 cleanrooms, these devices incorporate highly efficient sterilizing grade PVDF Membranes safely placed inside a Polypropelene housing.
Crafted with precision & expertise, the PoreCap® PVDF capsule filters are easy to install & use as they eliminate the need to clean and validate the stainless-steel housing separately.
Membrane Characteristics: The PoreCap® PVDF Capsule filters incorporate filters incorporate hydrophilic PVDF membrane that offers high flow rates, a high number of sterilization cycles, and ultra-low protein binding.
APPLICATIONS
- Vaccine Filtration
- Protein Solutions Filtration
- Sterilization of Hormonal Injectables
- Microbial Retention & Stabilization
- Filtration of of LPVs & SVPs
- Final sterile grade filtration
- Antibodies Filtration
- Tissue culture media and viral suspension filtration
Microbial Validation
Validated as per the ASTM F 838-05 requirements for determining bacterial retention of membrane filters used for liquid filtration
FDA Compliant
Biosafety & Extractables
Integrity Tested
Global Manufacturing Standards
Easy Identification & Tracking
Each filter unit has a unique identification marking which enables quick backtracking
100% Integrity Tested
Guaranteed Specification as per Actual Data
Non Leachable
Ergonomically Designed & Developed
TECHNICAL SPECIFICATIONS
PVDF Capsule Filters
| Materials of Construction | ||
| Membrane: | Hydrophilic PVDF | |
| Housing: | Polypropylene | |
| Core: | Polypropylene | |
| End Connections: | Polypropylene | |
| Rings: | Silicone (Only with 1/4" MNPT) | |
| Operational Parameters | ||
| Max Temp | 80 °C @ ≤ 2 Kg/cm2 | |
| Max Pressure | 3.5kg/cm2 @ 25 °C for forward | |
| 0.7kg/cm2 @ 25 °C for reverse | ||
| Autoclavable | 2 autoclave cycles at 121 °C | |
| Bubble Point: | ||
| 0.22µm: | ≥ 3450 mbar (50 psi) (with water wetted) | |
| 0.45µm: | ≥ 2206 mbar (32 psi) (with water wetted) | |
| Max Air Diffusion Flow (for 8" & 10″ Capsule): | ||
| 0.22µm: | ≤ 30 mL/min @ 2550 mbar (37 psi) | |
| 0.45µm: | ≤ 35 mL/min @ 1650 mbar (24 psi) | |
| Microbial Retention: | ||
| 0.22µm: | LRV > 7 for Brevundimonas Diminuta | |
| 0.45µm: | LRV > 7 for Serratia marcescens |
| Effective Filtration Area: | |||||
| Length: | 1″ | 2″ | 5″ | 8″ | 10″ |
| Area: | 0.025m2 | 0.05m2 | 0.10m2 | 0.20m2 | 0.60m2 |
QUALITY ASSURANCE & VALIDATION
All filters are 100% integrity tested and are developed and manufactured under an ISO 9001:2015 certified Quality Management System and designed to be used in cGMP compliant processes.
Microbial Validation
All our Cartridge and Capsule filters are validated as per the ASTM F 838 requirements for determining bacterial retention of sterilizing grade filters
Certificate of Quality
All our products are delivered along with a Certificate of Quality (CoQ) mentioning the materials of construction and testing & quality parameters
Throughput Studies
We help you select the perfect mix of prefilters and final filters by performing small scale filtration and determining the filtration area to reach your desired throughput
Extractables & Leachables
Our Extractables & Leachables testing study is a highly effective way to quantify and assess risks associated with leachable impurities from filters
